Mechanical Fuel Injection Pump Heavy Equipment Excavator Working Pressure 20kpa

Name: Mechanical Fuel Injection Pump Heavy Equipment Excavator Working Pressure 20kpa
Brand: Visbull
Price: 1 USD

Cheap Mechanical Fuel Injection Pump Heavy Equipment Excavator Working Pressure 20kpa wholesale

Brand Name : Visbull

Model Number : KD18D

Certification : Ghost/ISO/SGS/CE

Place of Origin : China

MOQ : 1 unit

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 2000 units per month

Delivery Time : 10 working days after received L/C or your deposit

Packaging Details : Naked packing

Product Name : Mini Excavator

Operation weight : 1700KGS

Engine : Laidong or Yanmar

Rated engine power : 19.1 kW or 14.8KW

Working pressure : 20 Mpa

Max. digging reach : 3715 mm

Max. digging depth : 2065mm

Max. digging height : 3025 mm

Contact Now

Mechanical Fuel Injection Pump Heavy Equipment Excavator Working Pressure 20kpa

1700KG Mini Hydraulic Excavator KD18D With Closed Cab , Diesel Engine

Model	Laidong or Yanmar
Cylinders	3
Bore/Stroke	82×84mm
Displacement	1.331L
Fuel injection	direct
Fuel injection pump	Mechanical
Fuel	Diesel
Fuel filter	Full flow
Cooling	water-cooling
Horsepower Net	19.1kw or 14.8kw @2300rpm
Maximum torque Net	87N.m @1320rpm
BOOM/ARM
BOOM
Swing	60° left / 45° right
Length	1805mm
Boom weight	69kg
Arm
Length	1150mm
Arm weight	35kg

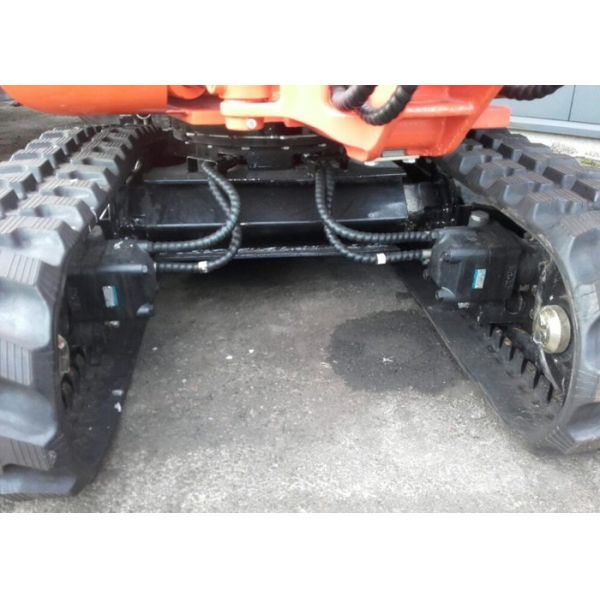

UNDERCARRIAGE
Number of rollers
Top, each track	1
Bottom, each track	3
Gradability	58%(30°)
HYDRAULICS
Pumps(2)	Gear pump
Capacity-Maximun	2×19.8L/min
System relief pressure-standard	18MPa
Pilot control hydraulic system-pump(1)	Gear pump
Maximun capacity	6.6L/min
Relief pressure	3MPa
Control valves-
8 function multiple control vavle
Pump#1 for right travel and swing and boom swing and arm
Pump#2 for left travel and boom and bucket and dozzer
Pump#3 for pilot valve
Swing-
motor(1)	Fixe displacement axial piston design
Speed	0-12rpm
Brake	Hydraulically released
Tail swing radius	1130mm
Tail swing overhang
Travel-
motor(2)	Two speed axial piston design
Final drive	Planetary gear reduction
Travel speed -	Forward/reverse
Low	2.0km/h
High	4.5km/h
HUDRAULIC CYLINDERS
Boom cylinder(1)
Bore diameter	63mm
Rod diameter	35mm
Stroke	410mm
Arm cylinder(1)
Bore diameter	63mm
Rod diameter	35mm
Stroke	430mm
Bucket cylinder(1)
Bore diameter	55mm
Rod diameter	32mm
Stroke	300mm
ELECTRICAL
Voltage	12 volts
Alternator	30 amp
Batteries(1) 12V	Heavy-duty
SERVICE CAPACITIES
Hydraulic tank
Refill capacity	25L
Total system	32L
Engine
w/filler change	5L
Fuel	18L
Radiator	3.5L
OPERATING WEIGHT
With 75kg operator,44kg bucket,
full fuel and standard equipment	1830kg
Ground pressure	36kpa

A. Overall height	2300mm
B. Overall length	3800mm
C. width of upper structure	1050mm
D. Track overall length	1460mm
E. Track overall width shoes	1050mm
F. Track shoe width	230mm
G. Center to center(inler to sprocket)	1090mm
H. Upper structure ground clearance	465mm
J. Minimum ground clearance	235mm
K. Tail swing radius	1130mm
L. Backfill blade height	250mm
Working weight	1830kg
Ground pressure	36kpa
Tail swing overhang
